Pressure Sensitive Adhesives

Adhesive properties Conditions for evaluation
[Adhesive properties]

Base material:PET (25 μm), glue thickness: 20 to 30 μm, direct application
Drying: 5 minutes at 105℃
Release paper: paper separator
Aging: at least 7 days at 23℃ (7 days at 40℃ for 4060, 4061, and 4090)
* A separate cross-linker should be blended for 4061 and 4090.
▪ Conforming to JIS Z 0237 (old JIS)
  • Adhesive force 23°C, 50%Rh, abrasive SUS (#280), 2 kg roller x 2 back-and-forth movements
    Speed: 300 mm/min (initial: 30 min, permanent: 24 h)
  • Retentive force 25 x 25 mm, abrasive SUS plate (#280), 2 kg roller x 2 back-and-forth movements, 20 minutes after application, 1 kg load, up to 1440 minutes ((1) 40°C, 30%Rh, (2) 80°C)
  • Ball tack (BT) J. DOW method, 23°C, 50%Rh

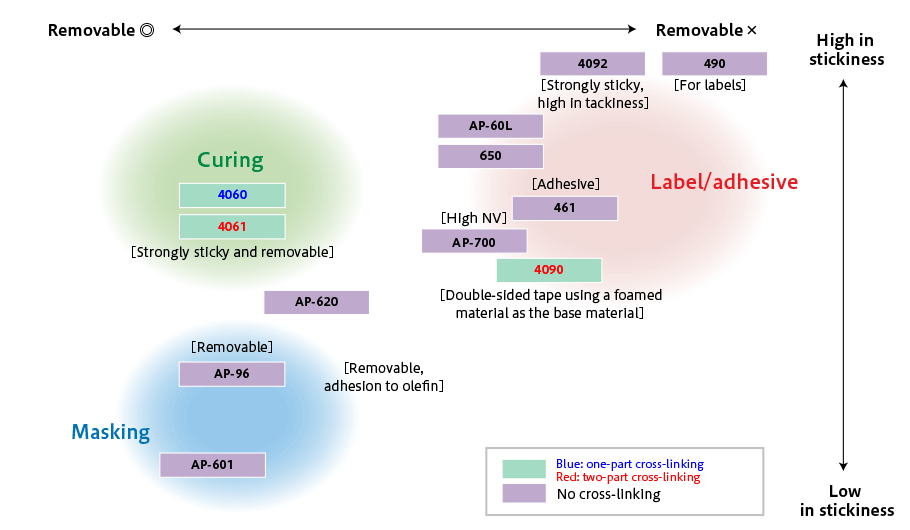

Removable types
R: RIKA BOND
M: Mowinyl		 Applications Solid content
(%)		 Viscosity
(mPa·s)		 pH Transfer application Adhesive force
(N/25 mm)		 Retentive force
(min or distance of displacement)		 BT
(no.)		 Removable
R AP-601 Masking (low temperature) 57.0 3,000(10) 7.0 × 2 7 ○
R AP-96 Masking (heat resistant) 54.0 3,500(10) 7.0 × 3 7 ○
R AP-620 Adhesion to olefin 61.5 3,500(10) 5.5 × 7 About 200 13 ○
M 4060 Curing 55.0 2,000(60) 8.3 × 11 About 700 10 ○
M 4061 Curing 53.0 2,000(60) 8.3 △ 10(*1) NC(*1) 7(*1) ○
Permanent types
R: RIKA BOND
M: Mowinyl		 Applications Solid content
(%)		 Viscosity
(mPa·s)		 pH Transfer application Adhesive force
(N/25 mm)		 Retentive force
(min or distance of displacement)		 BT
(no.)
M 4090 Double-sided tape using a foamed material as the base bacterial 52.5 10,000(12) 8.3 ○ 9 (*2) 0.15mm (*2) 12 (*2)
R AP-700 Strongly sticky 70.0 4,000 6.0 △ 10 NC 11
M 461 Adhesion to olefin, paper label 64.0 1,000 7.0 × 10 About 1100 10
R AP-80 Strongly sticky 58.0 6,000 6.5 ○△ 12 About 300 9
M 650 Strongly sticky 51.0 30,000 5.0 △ 12 About 300 4
M AP-60L Strongly sticky 51.0 3,000 8.0 × 13 About 300 4
M 4092 Strongly sticky 53.5 2,500(60) 8.3 ○△ 23 About 400 9
M 490 Strongly sticky 62.0 5,000 7.3 ○△ 26 About 200 11

*Figures in tables are representative figures only and are not specifications.

*1 Value when a recommended amount of a cross-linker is added
